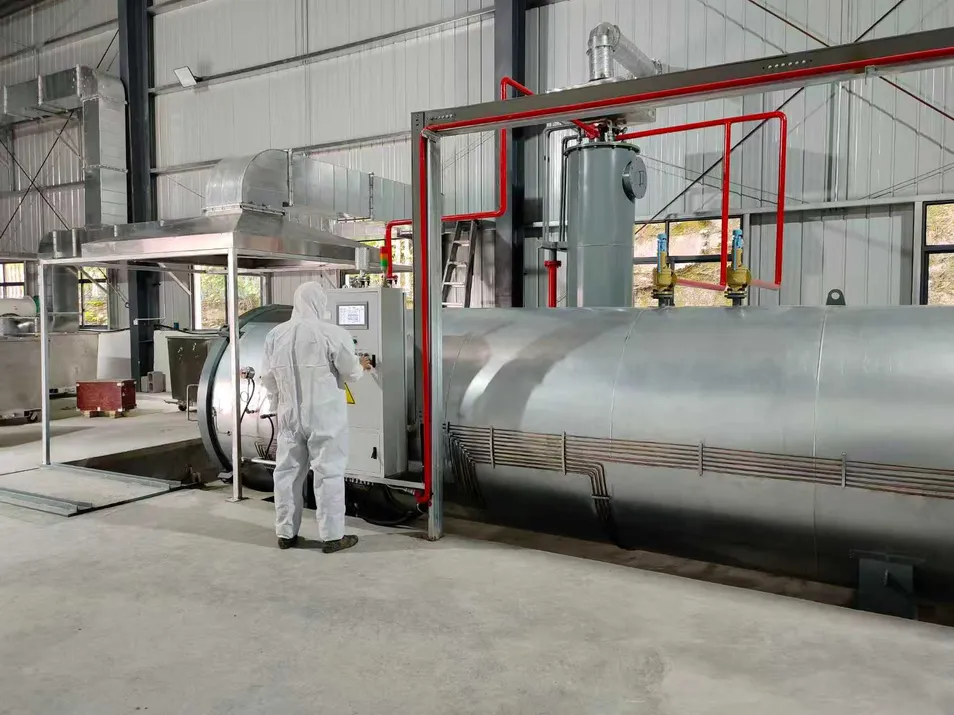

1. The medical waste autoclave works by using high-temperature, high-pressure steam to kill pathogenic microorganisms in medical waste, eliminating its potential infectious hazards. It is suitable for treating infectious and sharps waste listed in the "Medical Waste Classification Catalogue" and the "National Hazardous Waste List."
2. The medical waste autoclave employs a fully automatic PLC electrical control system, with settings for start-up, stop-up, automatic door opening, and automatic forward/backward control of the transfer cart. The equipment monitors the entire sterilization process in real time, ensuring results meet relevant regulatory requirements.

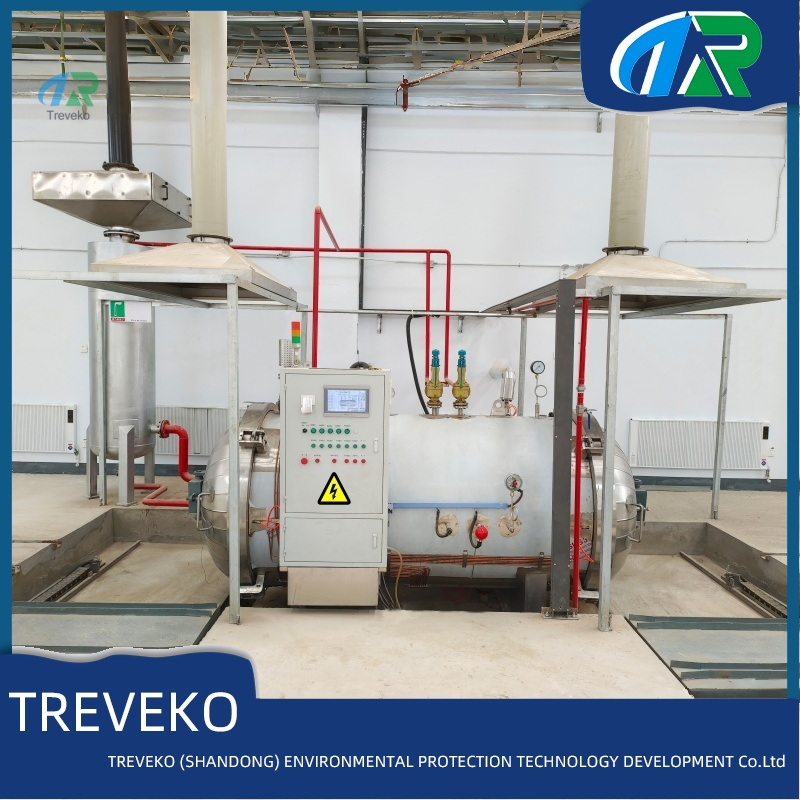

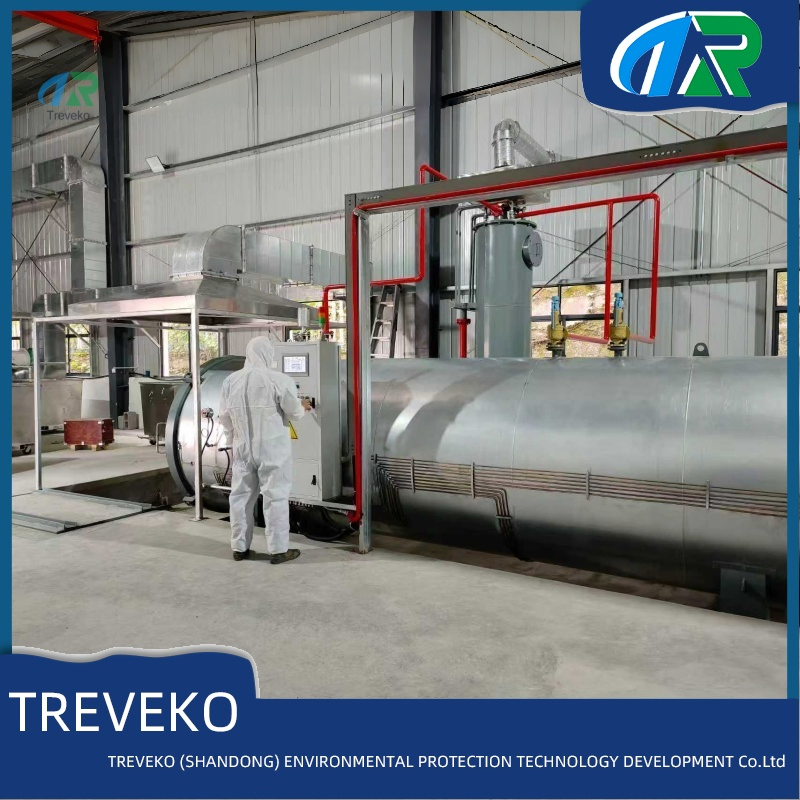

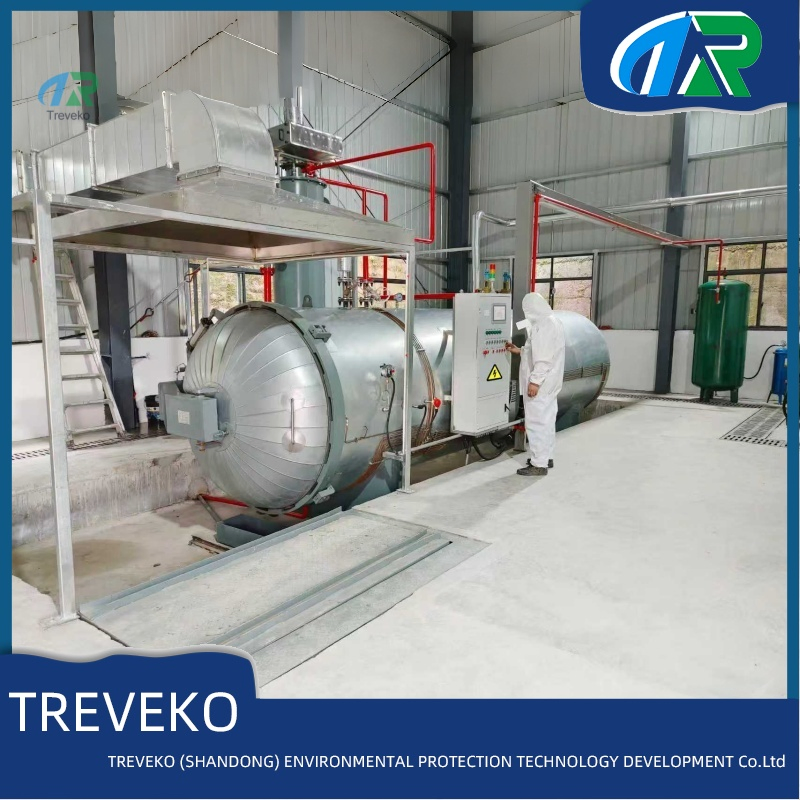

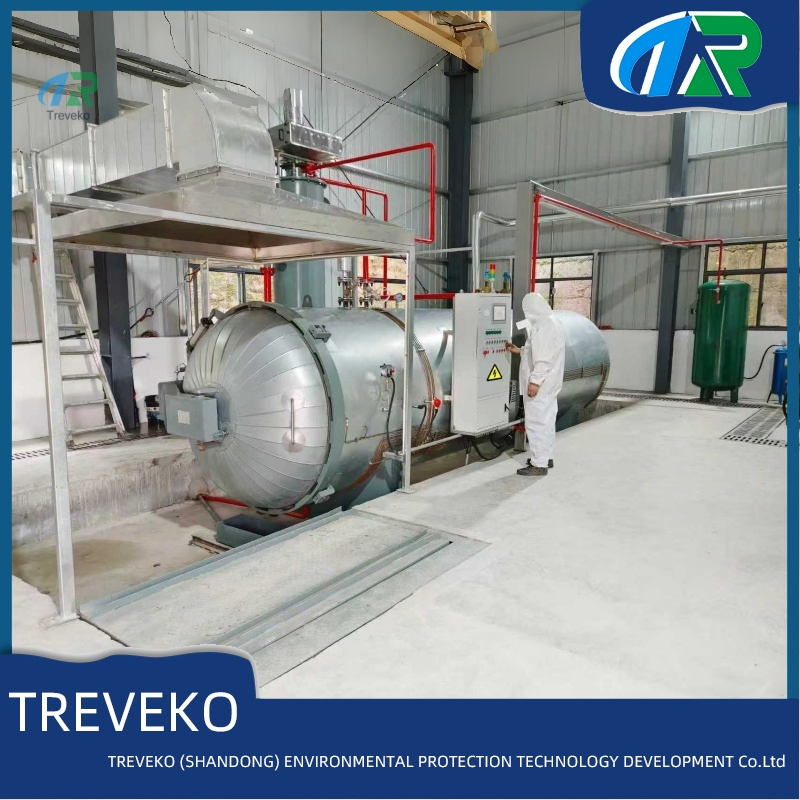

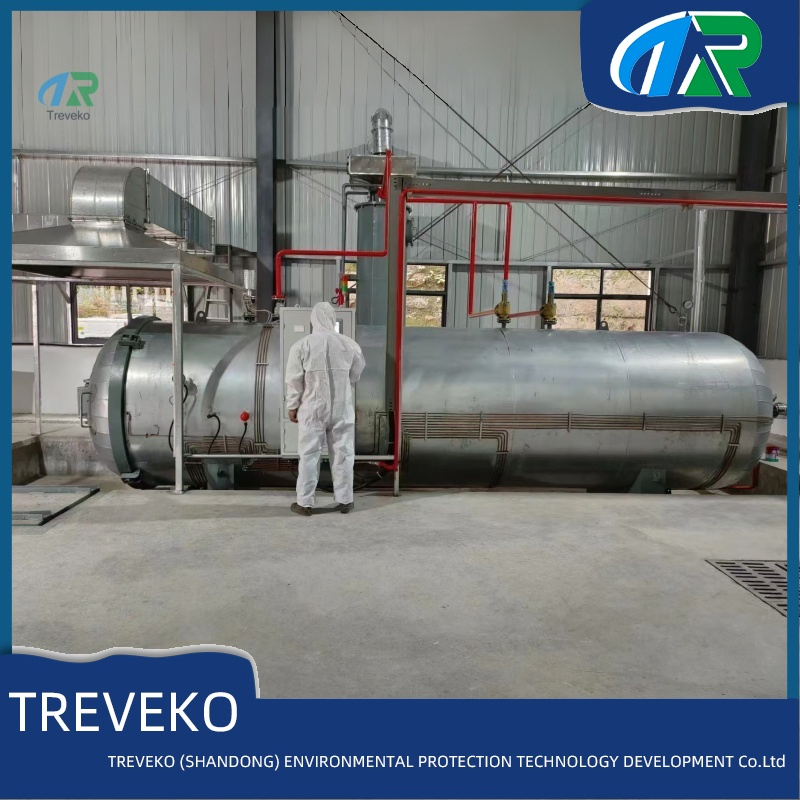

The complete set includes: Sterilizer body (high-pressure sterilization tank, air inlet/outlet, pressure gauge, safety valve, thermometer), tank inlet/outlet sealing doors, 2 transfer carts, air compressor, water purifier/softener, electric steam generator, induced draft fan, photo-oxidation equipment, pipeline circulation pump, and PLC electrical control cabinet.
| System Unit | Project | 2.5T type | 5T type | 8T type |
|---|---|---|---|---|
| Sterilization Tank | Volume | 2.5m³ | 10m³ | 12m³ |
| Material | Design pressure 0.8 MPa, Material SUS316 / Q345R | |||
| Water Softener | Power | 0.1KW | 0.2KW | 0.2KW |
| Output | ≥200KG/h | ≥500KG/h | ≥500KG/h | |
| Steam Generator | Power | 72KW×2 | 180KW×2 | 180KW×2 |
| Evaporation | 100kg/h | 250kg/h | 250kg/h | |
| Exhaust Fan | Power | 7.5KW | 7.5KW | 7.5KW |
1. Industry-standard moisture-proof and rust-proof packaging with wooden pallets and stretch film. Precision instruments are vacuum-sealed with cushioning foam.
2. Supports customized labeling and tamper-evident designs. We provide full logistics tracking and insurance services.
3. On-site packaging and hoisting for large equipment; batch packaging for smaller units. Fully compliant with road, sea, and air freight regulations.
A: The high-temperature steam sterilization process effectively removes odors. There is no noticeable odor after treatment, which facilitates safe subsequent disposal.
A: Yes. We support customization of core parameters such as processing capacity (2.5T to 8T+), overall dimensions, and specialized control systems.
A: We use high-grade SUS316 stainless steel or Q345R pressure vessel steel to ensure maximum durability and safety under high-pressure conditions.
A: We provide a 1-year warranty and offer free repair services if any quality problems emerge within the warranty period.
A: Yes, the system uses a PLC electrical control cabinet to automate the entire process, including door sealing, temperature regulation, and sterilization timing.
A: Exhaust gas is treated through a multi-stage system including pre-filters, HEPA filters, and photo-oxidation equipment to ensure it is harmless and odorless before release.
