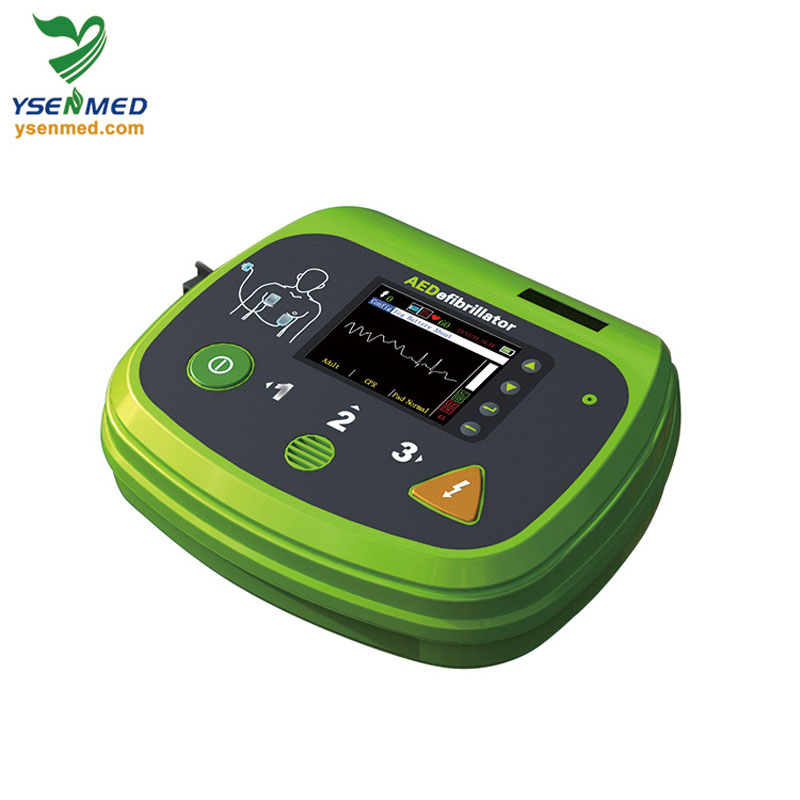

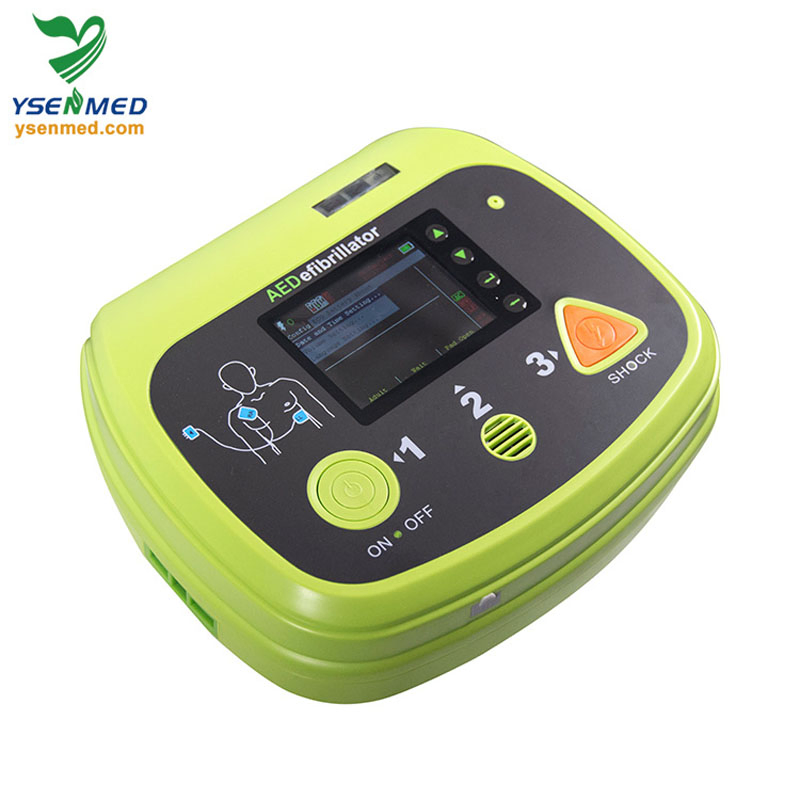

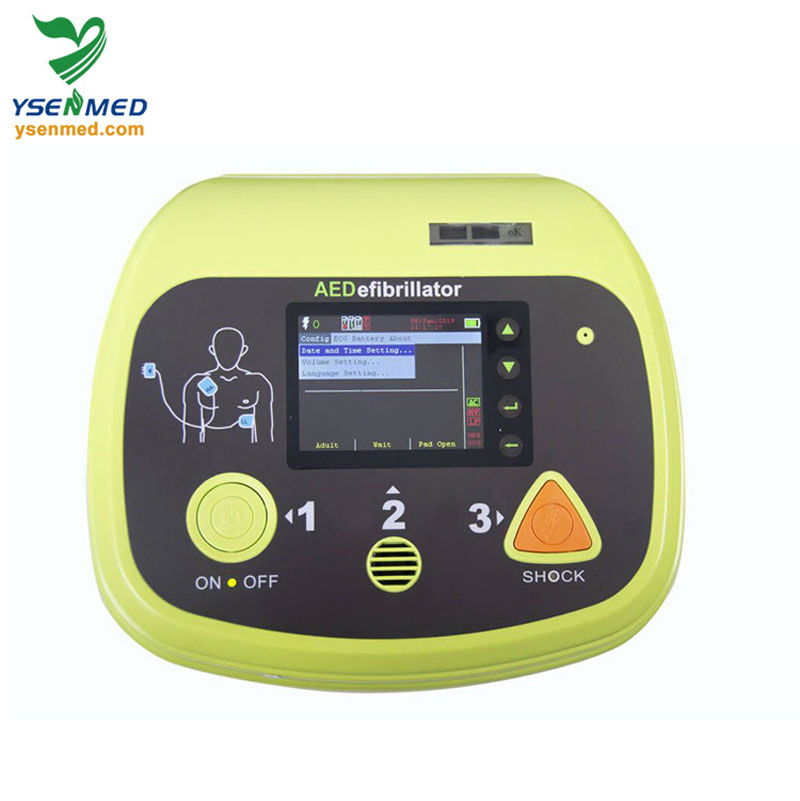

Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
1 / 5
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment
Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment

Emergency Ys-Aed7000p Medical Supplies First Aid Portable LCD Display Aed Defibrillator Medical Equipment

Type: Automated External Defibrillator
Kind: Automated External Defibrillator
Certification: CE, ISO13485
Send Inquiry

Product Description

Emergency YS-AED7000P Medical Supplies First Aid Portable LCD Display AED Defibrillator

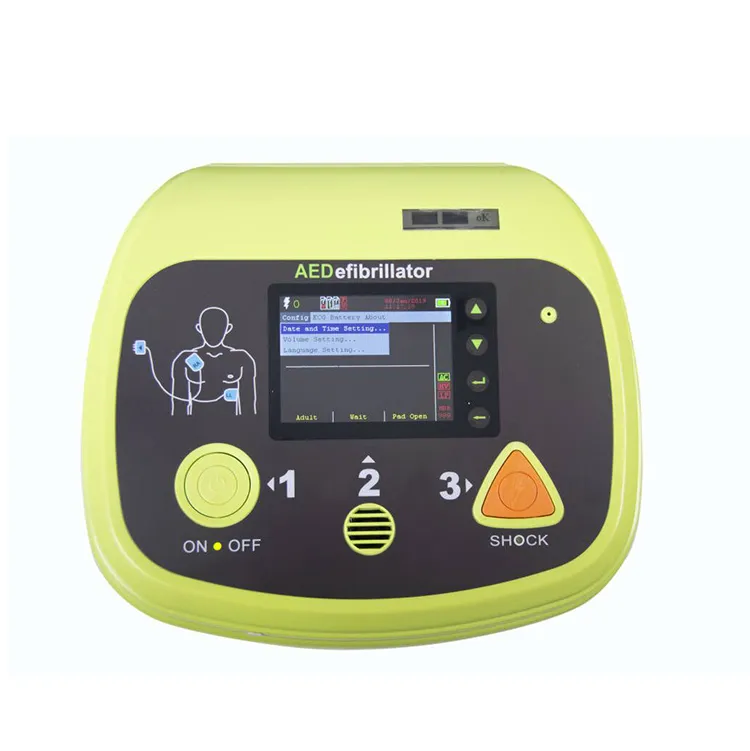

AED Defibrillator
Basic Information
Model NO.
YS-AED7000P
Group
Adult
LCD Display
With LCD Display
Display Size
3.5 Inch LCD
Output
Biphasic Truncated Exponential
Analysis Time
9s
Audible Prompts
19 Audible Prompts
Maximum Voltage
1800±20V
Visual Prompts
LED Prompts
Charge Time
10 Sec. to 200 J
Core Features
1
Simple three-step defibrillation process.
2
Efficient two-button operation for emergency response.
3
Extensive voice and visual prompts for the operator.
4
Advanced biphasic energy output technology.
5
Clear 3.5 inch LCD display for real-time monitoring.
Technical Specification
Category Specification
Output Biphasic Truncated exponential
Energy Sequence (Adult) 150/150/200(Default); 150/200/200; 200/200/200
Energy Sequence (Pediatric) 50/70/85(Default); 70/70/85; 70/85/85; 85/85/85
Analysis Time 9 sec.
Charge Time 10 sec. to 200 J
Audible Prompts 19 audible prompts
Visual Prompts LED prompts; Automatic self-test
Controls Six buttons - On/Off, Shock, and 4 software-configurable buttons
Output Accuracy ±15% into any impedance from 25 to 175Ω
Impedance Limits Output disabled when impedance is outside 20Ω to 200Ω
ECG Recovery Recovery after defibrillation in less than 10s
Product Detail View
Technical Chart
Product Layout
Frequently Asked Questions
How long does the YS-AED7000P take to analyze heart rhythm?
The device features a rapid analysis time of just 9 seconds, allowing for quick decision-making during emergency situations.
What type of display does this AED use?
It is equipped with a clear 3.5-inch LCD display that provides visual guidance and status updates alongside its audible prompts.
Can this defibrillator be used on children?
Yes, the YS-AED7000P has a specific Pediatric energy sequence (50/70/85J default) which can be configured as needed.
What is the charging time for a 200J shock?
The device can charge to 200 Joules in approximately 10 seconds, ensuring minimal delay when a shock is required.
How does the device assist the operator during a rescue?
The AED provides 19 distinct audible prompts and supplemental LED visual prompts to guide the user through the three-step defibrillation process.
Does the device perform self-tests?
Yes, it features an automatic self-test function and uses visual LED prompts to indicate its readiness for use.
