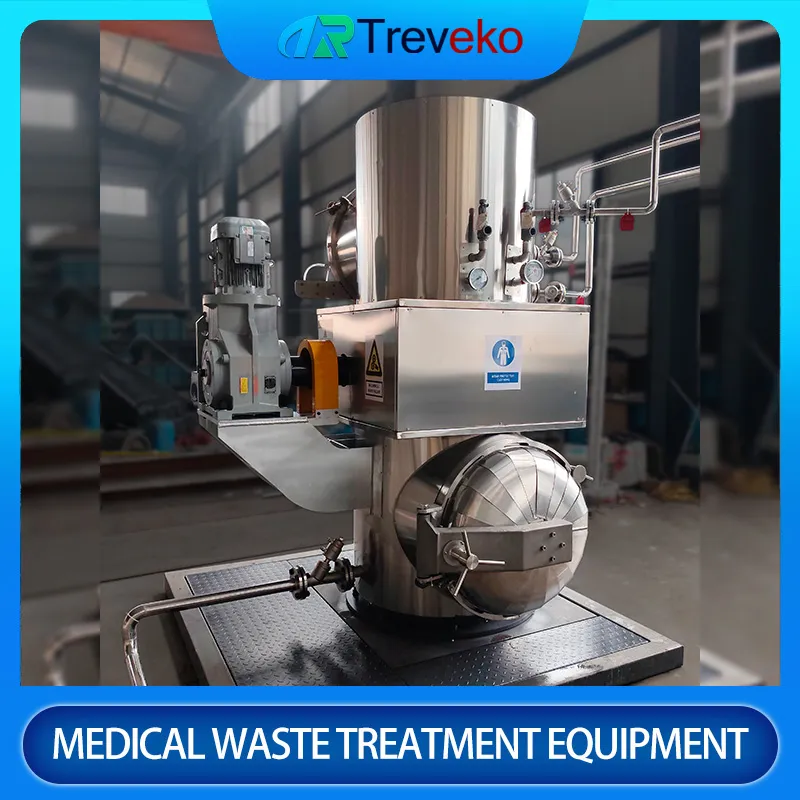

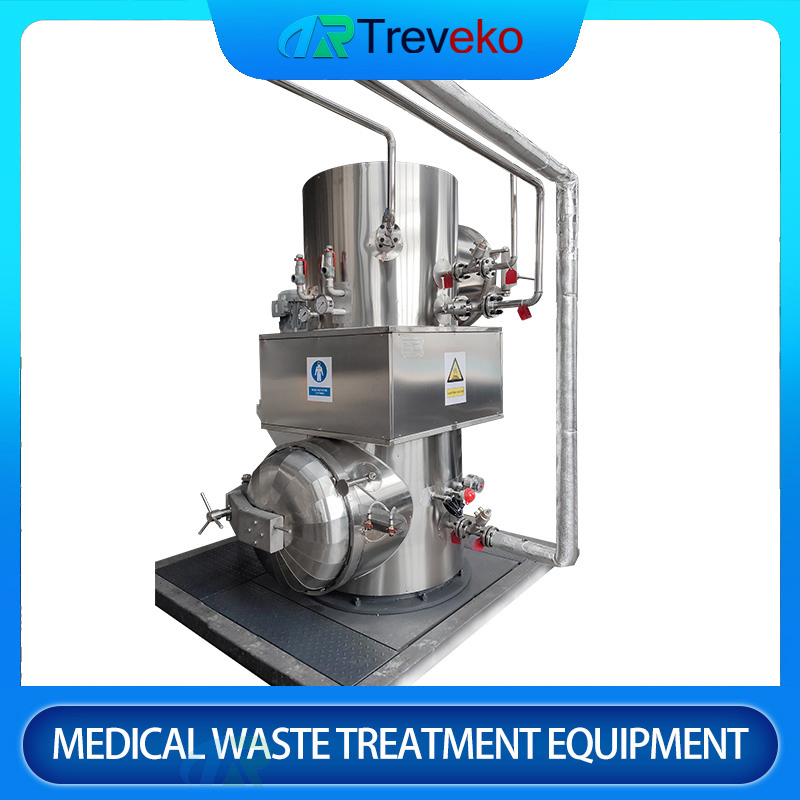

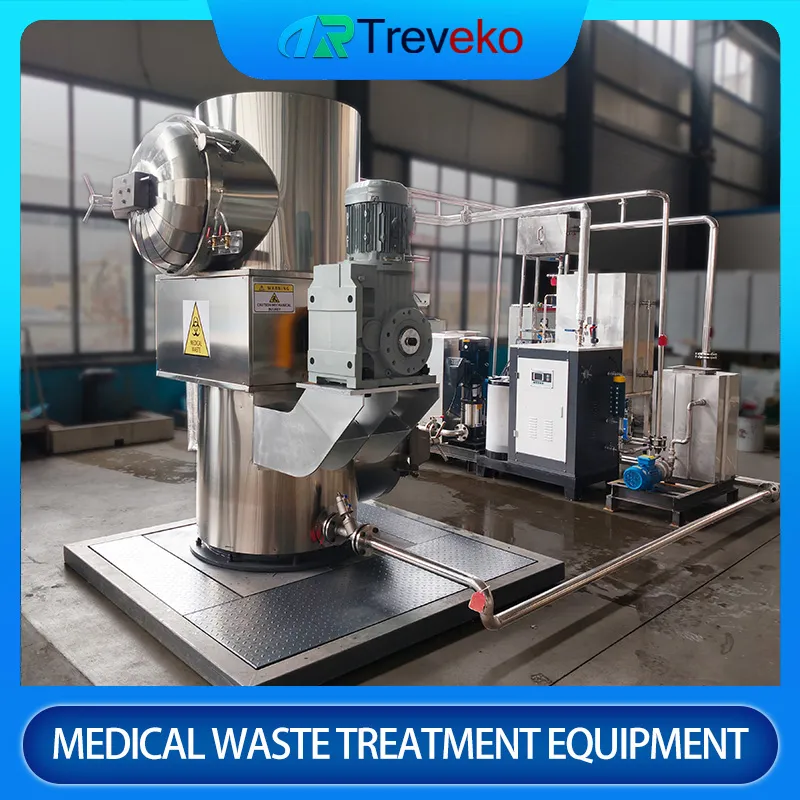

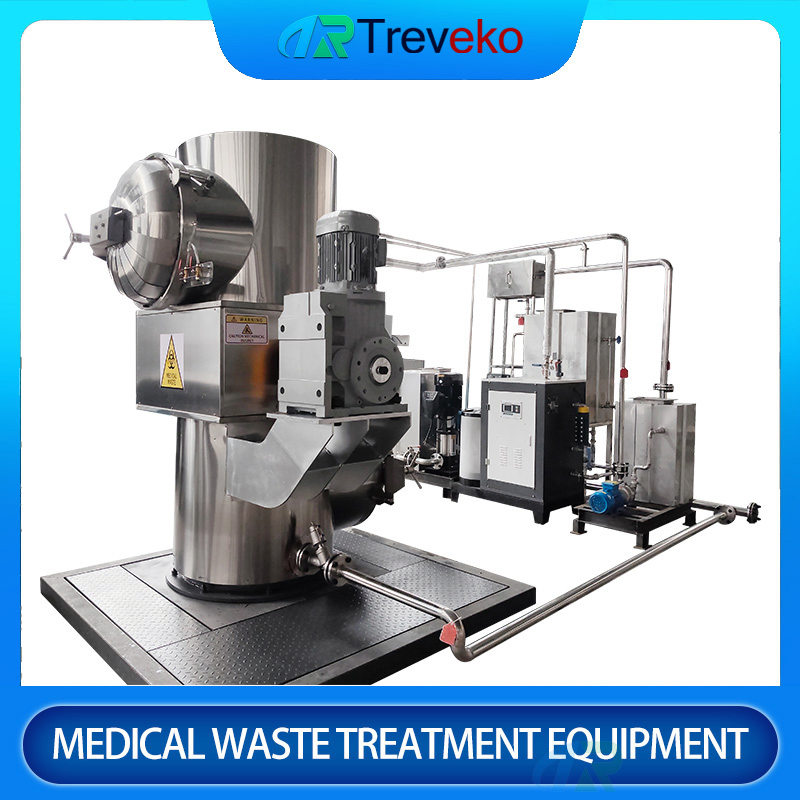

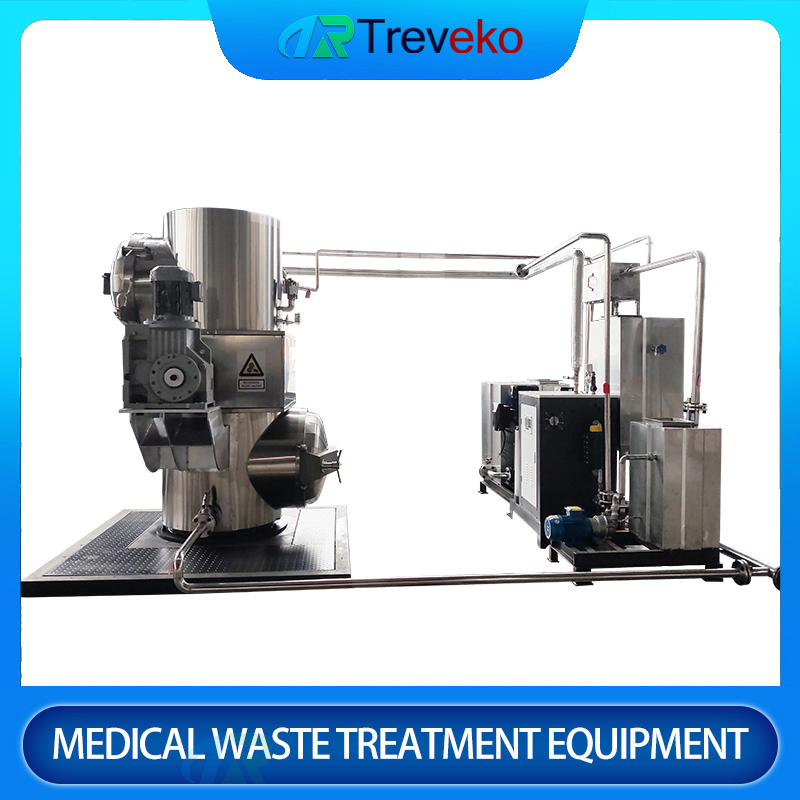

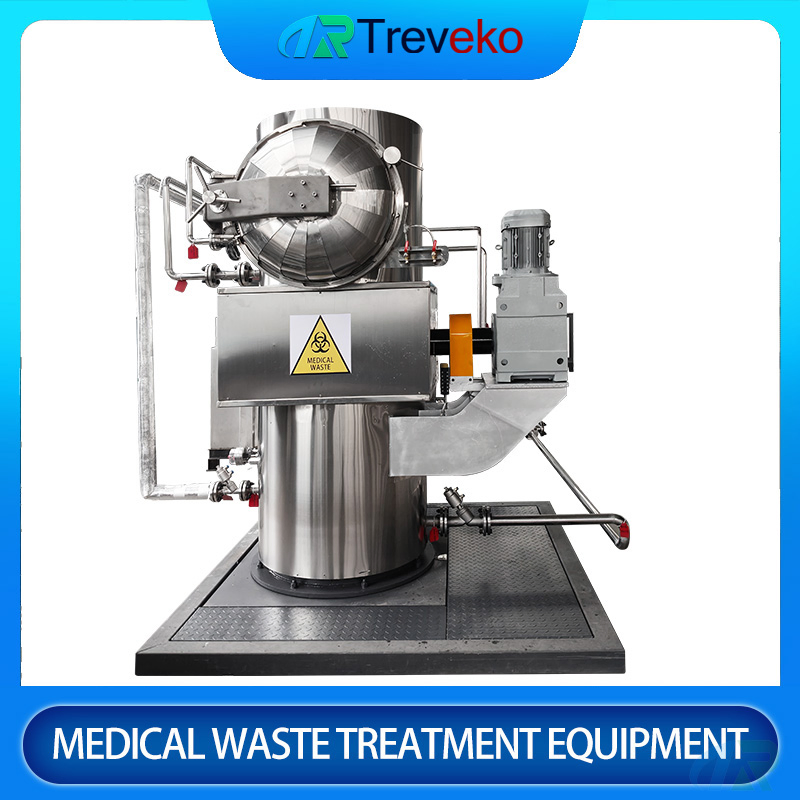

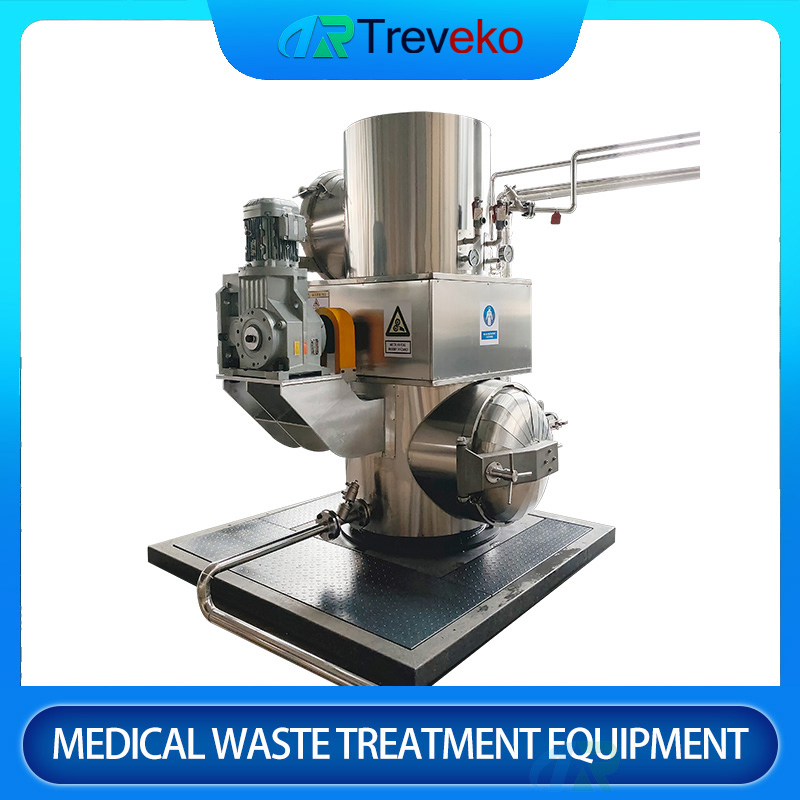

The Medical Waste Vertical Steam Sterilizer utilizes high-temperature, high-pressure saturated steam to penetrate and eliminate pathogenic microorganisms in medical waste thoroughly, ensuring safe disposal and transforming it into ordinary municipal solid waste.
Intuitive Touchscreen Control with PLC-based interface for real-time monitoring. Automatically generates cycle reports and supports optional remote monitoring via mobile APP.
Skid-Mounted Design allows for easy on-site installation. It enables decentralized treatment of medical waste directly at hospitals or clinics, reducing logistics costs.
| System Unit | Item | Technical Parameters |
|---|---|---|
| Processor Parameters | Batch Capacity | 25 - 30 kg |
| Inactivation Level | Spore microorganism: 8 Log10 | |
| Volume Reduction | ≥85% | |
| Vertical Container | Work Pressure | 0.3MPa |
| Material | Stainless steel (Corrosion resistant) | |
| Operating Temp | 134℃ | |
| Crushing System | Motor Power | 7.5kw |
| Blade Material | D550 imported alloy steel |
1. Medical waste is manually fed into the sterilizer. The shredding system breaks waste into particles. Pre-vacuum purges air before high-temperature saturated steam is introduced.
2. After treatment, a vacuum process removes remaining air. The sterilized waste is reduced in volume and weight, becoming safe for municipal waste collection systems.
